Cache Memory

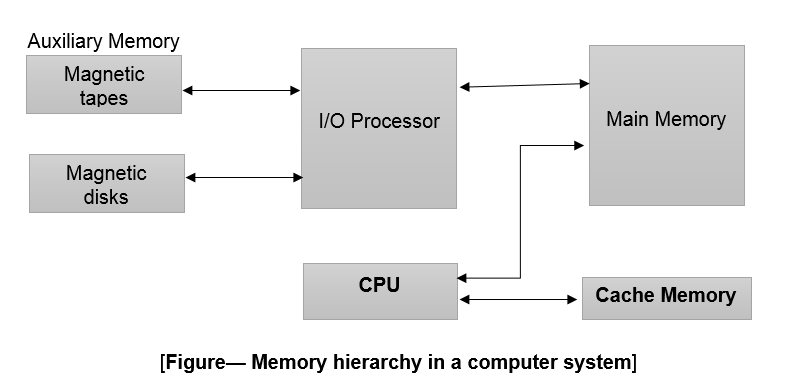

Cache Memory: - Cache memory is one of the fast and small memory. It is placed between the CPU and main memory. The access time of cache memory is less than main memory by the factor of 5 to 10. Cache is the fastest component in the memory hierarchy and approaches the speed of CPU components. The operation of cache memory is as follows: When CPU needs access memory. The cache is examined. If the word is found in the cache it is accessed from cache memory. If word is no found in the cache memory, then it is accessed from main memory.


 The performance of cache memory is frequently measured in terms of quantity called hit ratio. When CPU refers to memory and finds the word in cache, it is said to produce a hit. If the word is not found in cache, it is in the main memory and it counts as a miss. The basic characteristics of cache memory is its fast access time.

Mapping: - The transformation of data from main memory to cache memory is referred to as a mapping process. Each memory address maps to exactly one set in the cache. Some of the address bits are used to determine which cache set contains the data. If the set contains more than one block, the data may be kept in any of the blocks in the set.


Three types of mapping procedures are of practical interest when considering the organization of cache memory:
  •       Associative mapping
  •     Direct mapping
  •    Set-associative mapping

Associative mapping: - The fastest and most flexible cache organization uses an associative memory. The associative mapping stores both the address and data of the memory word. This permits any location in cache to store any word from main memory.

Caches are classified as either write-through cache or write-back cache. Modern caches are usually write-back, because main memory access time is so large.

·         In a write through cache, the data written to a cache block is simultaneously written to main memory. A write-through cache requires no dirty bit but usually requires more main memory writes

·         In a write-back cache, a dirty bit (D) is associated with each cache block
